Actions Overview

Actions are the building blocks of workflows. Each action node performs a specific operation and passes its result to downstream nodes.

Action Categories

Execute directly within the workflow engine. Fast, no external calls.

Action	Description
log	Log a message with timestamp
delay	Pause execution for a duration
filter	Filter an array using MongoDB-style DSL
format	Format data into strings using templates
pluck	Extract a field from each object in an array
regex	Extract named capture groups from text
storage	Set workflow-scoped key-value pairs
org-storage-get	Read organization-scoped storage
org-storage-set	Write organization-scoped storage
org-storage-list	List organization storage keys
code-transform	Execute custom JavaScript transformations
send-webhook	Send HTTPS POST to an external URL
trigger-workflow	Trigger another workflow (fire-and-forget)
deploy-contract	Deploy a smart contract
verify-contract	Verify contract source code
db-query	Execute SQL on org's D1 database

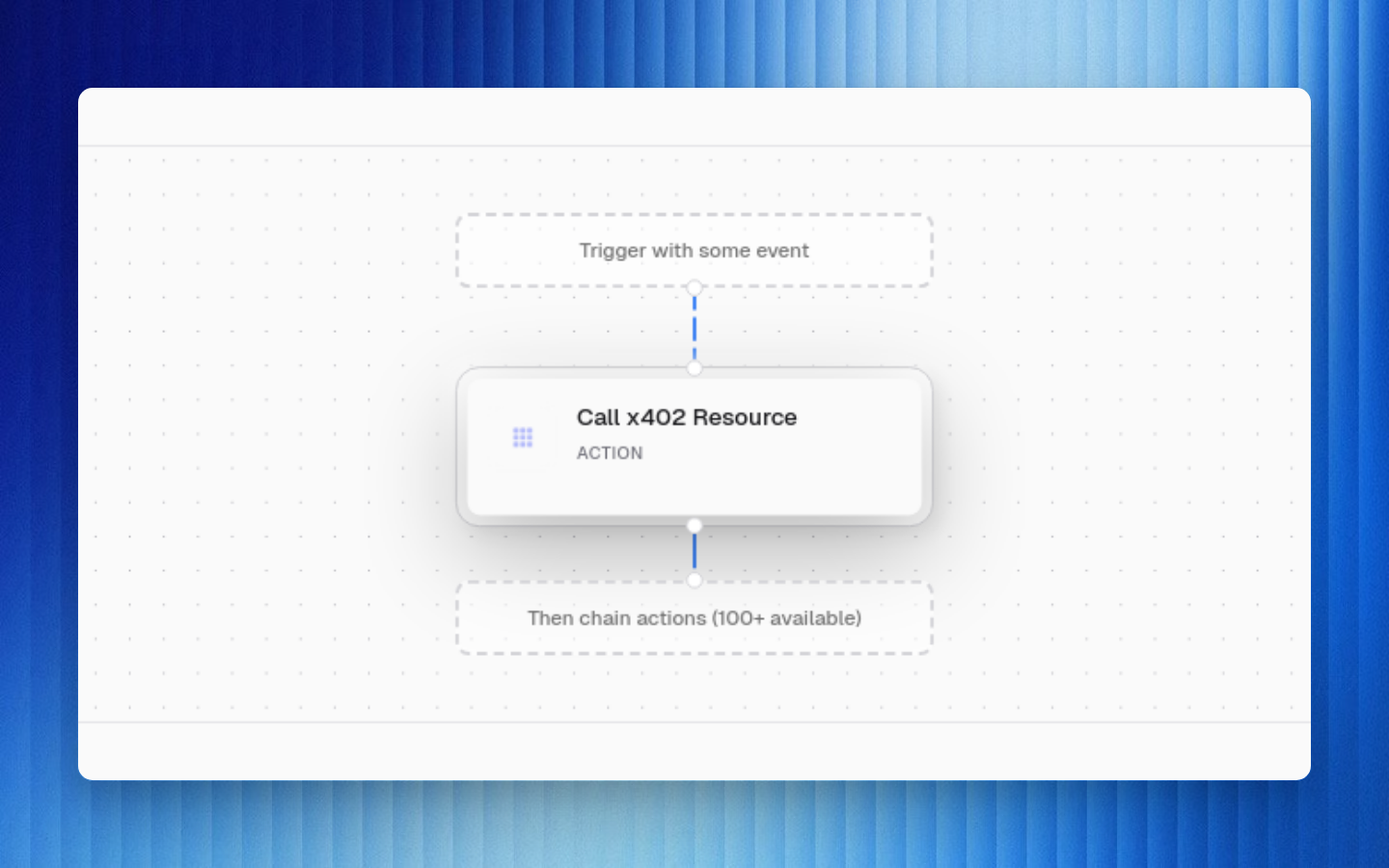

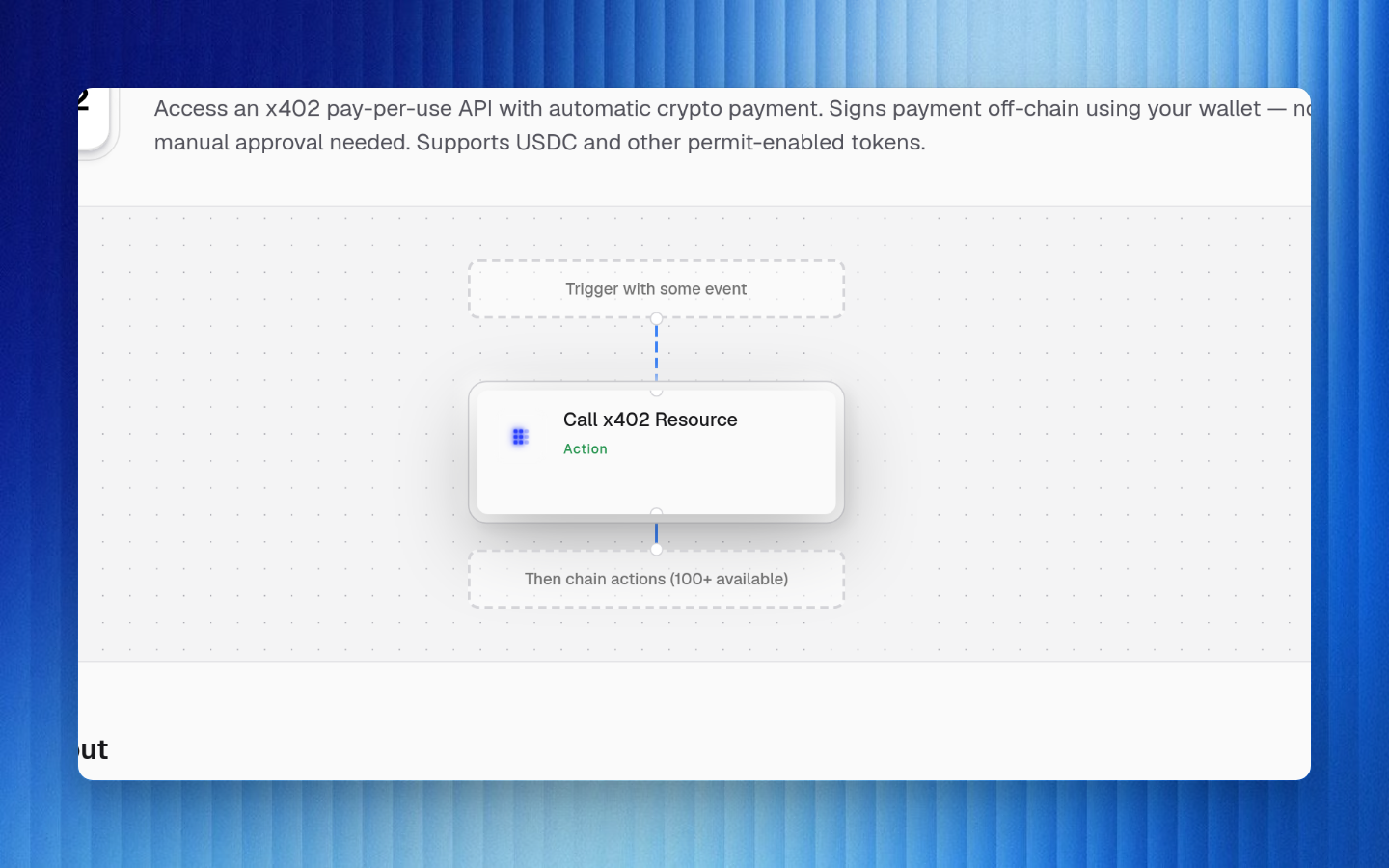

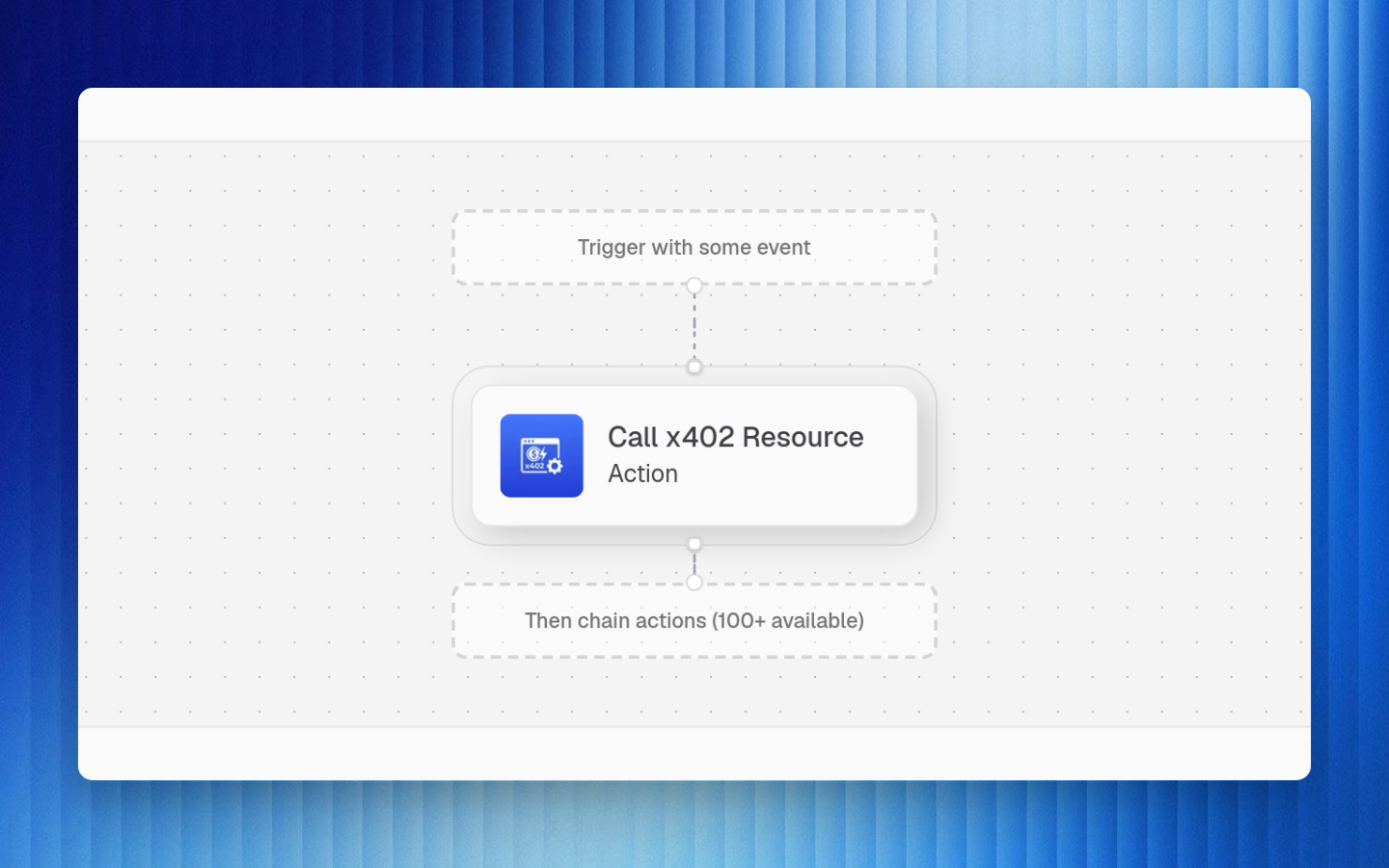

x402-endpoint	Call a payment-gated API endpoint

See Built-in Actions for full details.

Control flow actions that determine execution order.

Action	Description
if	Conditional branching (then/else)
for-each	Loop over an array, running a subgraph per item
wait	Pause execution until an external event resumes it

Execute via the b3os-actions service. These interact with external APIs and blockchain networks.

Category	Examples
EVM On-Chain	Send tokens, swap, deploy contracts, read/write contracts
DeFi	Aerodrome, Morpho, CoW Swap, Uniswap
Data	CoinGecko, Coinglass, DeBank, Dune, Zerion
Messaging	Slack, Discord, Telegram, Email
Prediction Markets	Polymarket trading, positions, orderbook
Utility	HTTP requests, AI chat, math operations

See the Actions tab for provider-by-provider reference.

Using Actions

Props

Actions are configured via props -- key-value pairs passed to the executor:

json
{
  "type": "log",
  "props": {
    "message": "Current price: {{trigger.result.price}}"
  }
}

Connectors

Actions that need credentials reference a connector (encrypted stored credentials):

json
{
  "type": "send-slack-message",
  "connector": "my-slack-bot",
  "props": {
    "channel": "#alerts",
    "text": "New event detected"
  }
}

Results

Every action produces a result stored in ExecutionState. Access it from downstream nodes:

text
{{node-id.result.fieldName}}
